T1 to multimode fiber optic media converter (T1 fiber modem) - FIB1-T1R-SC2F, SC, 2Km, 1310nm

You looking to find the "T1 to multimode fiber optic media converter (T1 fiber modem) - FIB1-T1R-SC2F, SC, 2Km, 1310nm" Good news! You can purchase T1 to multimode fiber optic media converter (T1 fiber modem) - FIB1-T1R-SC2F, SC, 2Km, 1310nm with secure price and compare to view update price on this product. And deals on this product is available only for limited time.

Price: $165.00

Product Feature

• Standards: T1: ITU-T G.703, G.704, AT&T TR-62411, ANSI T1.403, Interfaces: RJ48c 100ohm balanced T1 connector and dual SC 155M fiber port
• Operating wavelength: 1310nm multimode, Operating distance: 2Km on 62.5/125um fiber, works also on 50/125um fiber, power budget 11dB, Optical connector: SC dual type
• Front LEDs: Power, Fiber Link, T1 Link, Test mode
• Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug - included in the box
• Temperature: 0 - 50°C (Operating); 0 - 70� C (Storage), Humidity: 20 - 80% non condensing (Operating); 0 - 90% (Storage), Consumption: less than 4W, Dimensions(WxDxH): 85.6mm x 122.6mm x 20mm, Weight: 340g (without AC adapter), Compliance: CE, FCC Class A, MTBF: 65,000 hours

Product Description

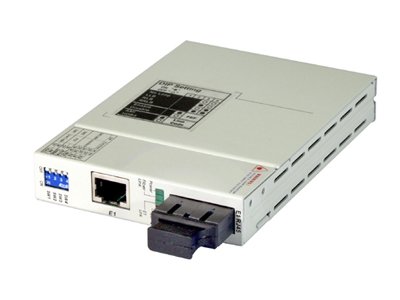

The FIB1-T1R-SC2F is a fiber media converter for G.703 T1 transmission/transport and features an RJ-48c connector for connection to 100 Ohm twisted pair wiring. FIB1-T1R-SC2F operates on multimode fiber up to 2Km (1.3mi) distance. The fiber media converter is equipped with dual SC type optical connector. The media converter is also sometimes called T1 fiber modem. When the FIB1-T1R card is placed in the FRM301 rack with SNMP management, the card status, type, version, fiber link status, E1 or T1 link status and alarms can all be displayed. Configuration is also available to enable or disable the port, reset the port, do far end fault setting, and initiate local or far end loop-back tests.

T1 to multimode fiber optic media converter (T1 fiber modem) - FIB1-T1R-SC2F, SC, 2Km, 1310nm Review

This product was simple to set up and test, and is now installed and working to drive a PRI link from CPE to CPE (single manufacturer) with a < 1Km fiber run between buildings. Obviously, we had to buy two and place one at each end...
